Is CO2 sentient? Ari Halperin and Anthony Watts claim the carbon cycle is "fraud"

After a rattled Anthony Watts spat out dummies yesterday, today he's going for broke and has posted an article denying the carbon cycle (archived here). You may recall how, earlier this week Anthony fibbed to his readers, claiming "I don’t like to use the word “fraud”"? Well, here he is not five days later with a blog article alleging IPCC fraud. The supposed fraud? Well, it turns out that Anthony's guest blogger doesn't believe in the carbon cycle. You could say he's a carbon cycle denier.

Excuse the lengthy article. It's not exactly a primer, but there's some detail. I figured people who've never heard of the carbon cycle might find it useful. (The image is because at one point, Ari seems to be suggesting that CO₂ is sentient.)

The carbon cycle

The carbon cycle has been described as a fast cycle plus a slow cycle. The fast cycle involves short term fluxes as happens with photosynthesis (an annual cycle) and other short term processes of the order of decades (vegetative growth and decay etc). The slow cycle involves medium term fluxes on a timescale of centuries, particularly the exchange between the ocean and atmosphere, as well as very slow chemical and geological processes (thousands to millions of years), such as weathering of rocks.


There is an excellent, easy-to-read description of the carbon cycle on NASA's Earth Observatory website. Here's a taste:

Through a series of chemical reactions and tectonic activity, carbon takes between 100-200 million years to move between rocks, soil, ocean, and atmosphere in the slow carbon cycle. On average, 10¹³ to 10¹⁴ grams (10–100 million metric tons) of carbon move through the slow carbon cycle every year. In comparison, human emissions of carbon to the atmosphere are on the order of 10¹⁵ grams, whereas the fast carbon cycle moves 10¹⁶ to 10¹⁷ grams of carbon per year.

Here's a representation from the NASA article. Click to enlarge as always:

Figure 1 | The carbon cycle. This diagram of the fast carbon cycle shows the movement of carbon between land, atmosphere, and oceans. Yellow numbers are natural fluxes, and red are human contributions in gigatons of carbon per year. White numbers indicate stored carbon. (Diagram adapted from U.S. DOE, Biological and Environmental Research Information System.) Source: NASA

Where's the fraud?

Anthony Watts claims in the headline that "The IPCC has been Deceiving the Public about the Carbon Cycle from the Start". His so-called "evidence" is provided by his guest blogger Ari Halperin. Ari is an uber-conspiracy theorist in the style of Tim Ball. Ari is the one who suggested that the people who murdered Justice Scalia could have escaped over the border to Mexico. He's also the one who offered deniers a custom Google search bar so that they could avoid contaminating their climate science denial with anything vaguely science.

Today Ari is rejecting the carbon cycle. He seems to accept part of it, namely photosynthesis. He doesn't say much about other parts of the cycle. I don't know if he knows much about any other parts. He claims not that the IPCC report was incorrect. Not that he offers any valid reasons. Just that the IPCC's "treatment of the carbon cycle was fraudulent from the start". He starts with;

Many people hold the opinion that the early full reports of the IPCC Working Group I were scientifically wholesome, at least for some time. This might be true for some parts of the reports, but their treatment of the carbon cycle was fraudulent from the start, i.e., from the IPCC First Assessment Report (FAR, 1990).

Is CO₂ sentient? How does it know which queue to get in, faster or slower?

Ari provides no evidence of fraud. Quite the contrary. As he explains, from the very first IPCC report the scientists described the carbon cycle. Ari quotes from the first assessment report FAR:

“Because of its complex cycle, the decay of excess CO2 in the atmosphere does not follow a simple exponential curve … For example, the first reduction by 50 percent occurs within some 50 years, whereas the reduction by another 50 percent (to 25 percent of the initial value) requires approximately another 250 years” (FAR WGI, p. 8).

And Ari leads his readers to a fascinating concept - that CO₂ is sentient. He wrote:

The authors of this text did not explain how CO2 knows when it is in the “first reduction” and when it is in another one, which is supposed to take five times longer. This ideation is not grounded in any scientific evidence.

It sounds as if Ari believes that CO₂ molecules have an innate ability to choose. He wonders how they know which queue to get in, the faster lane or the slower fast lane. That opens up some wondrous opportunities for the discovery of as yet undetected sub-atomic-sized complex neural masses in simple molecules. Such a shame he doesn't elaborate.

Of course Ari's assertion that there is no evidence that CO₂ decay doesn't follow a simple exponential curve is nothing more than a dumb assertion.

As an aside, I don't know why it is, but I've noticed that some deniers have a penchant for avoiding the most recent science and referring to science written 25 years ago. Here is a diagram from the latest IPCC AR5 WG1 report, which illustrates what would happen in an idealised situation if a very large pulse of CO₂ were to be shot into the air.

Figure 2 | Percentage of initial atmospheric CO2 perturbation remaining in the atmosphere in response to an idealized instantaneous CO2 emission pulse in year 0 as calculated by a range of coupled climate-carbon cycle models. Multi-model mean (blue line) and the uncertainty interval (±2 standard deviations, shading) simulated during 100 years (left panel) and 1,000 years (right panel) following the instantaneous emission pulse of 100 PgC. (adapted from Box 6.1, Figure 1). {Box 6.1} Source: IPCC AR5 WG1 - TFE.7 Figure 1

As the diagram illustrates, the speed of decay depends on the amount of CO₂ initially. The smaller pulse dissipates faster at first, and by the end of 100 years around 30% remains. The larger pulse still has around 70% remaining after 100 years. After 1000 years, there's less than 20% of the smaller pulse still in the air. With the larger pulse, there's still 40% in the air after 1000 years. For comparison, I think the amount of CO₂ we've added to the air since the industrial revolution, not emissions, just the part that's remained, is around 260 PgC. If atmospheric CO₂ increased at around 3 ppm/year, that would be around 64 PgC being added each decade. At 4 ppm/year we would be adding 85 PgC/decade. (I used the calculations on Rich's blog.)

Balancing the carbon budget

Balancing the carbon budget requires knowing how much carbon is being added to the atmosphere, how much is being taken up by the oceans, inland waterways and lakes, how much is being absorbed by the land surface (soil etc) and how much is being used up by plants etc on balance. Ari reports (less than fully) what was estimated in FAR. It was actually an estimate for the decade 1980 to 1989 only, not a universal estimate. Here it is:

Ari complains that 25 years ago, scientists reported that the carbon budget wasn't completely balanced. That is, that they didn't know, at the time, what exactly was happening to all the the CO₂ we'd pumped into the air and reported a net imbalance of 1.6 +/-1.4 Gtonnes C/year.  Ari seemed to think that it should have been known precisely. He also conspiratorially referred to the reported net imbalance as an "error". Ari wrote:

The error, misleadingly called “net imbalance” by the authors, was equal to CO2 removal due to the extra fertilization. This is how the IPCC explained its decision to disregard CO2 fertilization:

"There are possible processes on land which could account for the missing CO2 (but it has not been possible to verify them). They include the stimulation of vegetative growth by increasing CO2 levels (the CO2 fertilization effect), the possible enhanced productivity of vegetation under warmer conditions, and the direct effect of fertilization from agricultural fertilizers and from nitrogenous releases into the atmosphere." (FAR WGI, p.13, emphasis is mine).

It takes very warped thinking process to interpret the above clear statement of possibilities as "disregarding" those possibilities. I wonder if Ari knows that he'd never have found out that "CO₂ is plant food" except for scientists who discovered this?

Simplified schematic of the carbon cycle

What Ari doesn't do is show the carbon budget as represented in the most recent IPCC report, so I will. The science has come a very long way since 1990. The complicated diagram below is put forward as a simplified schematic. Click to enlarge it.

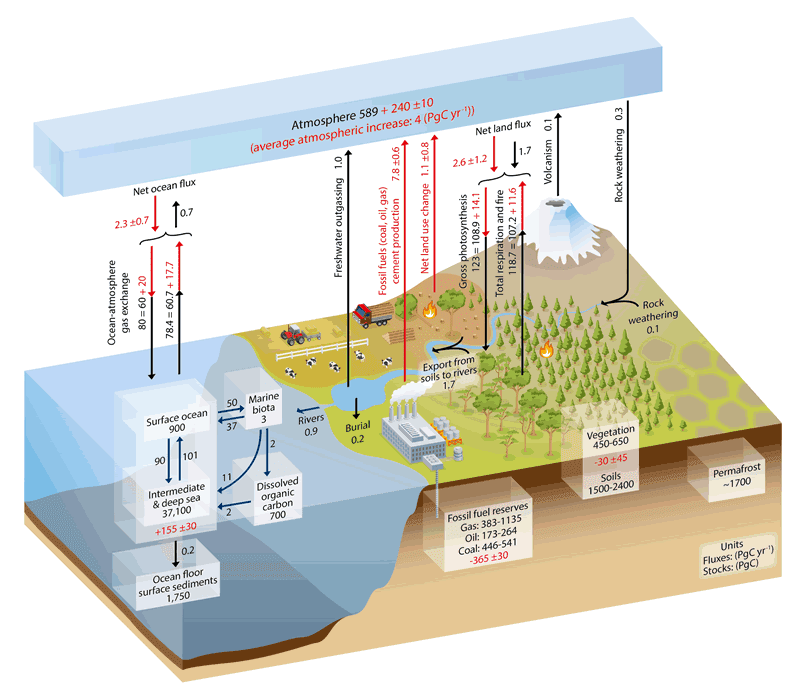

Figure 3 | Simplified schematic of the global carbon cycle. Numbers represent reservoir mass, also called ‘carbon stocks’ in PgC (1 PgC = 1015 gC) and annual carbon exchange fluxes (in PgC yr–1). Black numbers and arrows indicate reservoir mass and exchange fluxes estimated for the time prior to the Industrial Era, circa 1750. Red arrows and numbers indicate annual “anthropogenic” fluxes averaged over the 2000–2009 time period.  Source: Fig 6.1 of Chapter 6 from IPCC AR5 WG1 report.

For a simplified schematic, it certainly has to have one of the longest and most complicated captions in the entire report. I've only included very short excerpts. You can read the lot in Chapter 6 of the AR5 WG1 report if you want to see the detail.

Where did human emissions come from and go to?

The report indicates that we added 545 PgC to the air between around 1750 and 2011, with 155 PgC being absorbed by the oceans and 150 PgC being absorbed by natural terrestrial systems (areas not affected by land use changes).

I couldn't find any simple table similar to that in FAR in the latest IPCC report. The diagram below is probably the closest. It shows the emissions and their sources from 1750 to around 2011, and what happened to them (absorbed by land and ocean sinks, the atmosphere etc).

Figure 4 | Annual anthropogenic CO2 emissions and their partitioning among the atmosphere, land and ocean (PgC yr–1) from 1750 to 2011. Source: Fig TS.4 from IPCC AR5 WG1 report.

Once again, the caption in the IPCC report has a lot more detail. It's in the Technical Summary of the IPCC AR5 WG1 report.

Let's visit La La Land for a bit

If you go back to La La Land (aka WUWT), you'll find that Ari Halperin sounds quite deluded. He wrote;

This episode sheds light not only on the carbon cycle treatment, but also on the IPCC’s epistemology in other areas. It decides which empirical facts to acknowledge and which to ignore, and makes up whatever it needs. Since the early 1990’s climate-related research has been allocated huge budgets, and it produced a large volume of results of various quality. That allowed the alarmists to cherry pick not only data, but even physical processes. The presence of honest scientists put some limits on these machinations, but the alarmists found ways around that obstacle.

The "episode" he is referring to is the fact that back in 1990, scientists had not yet worked out where all the CO₂ emissions were ending up, but were able to state some likely sinks. What he thinks is that back then the scientists should have been able to put a number on everything. I don't have a clue what caused him to think that. He doesn't say.

He does seem to have a serious cognitive disorder, because he quoted the FAR report:

For each gas in the table, except CO2, the lifetime is defined here as the ratio of the atmospheric content to the total rale of removal. This time scale also characterizes the rate of adjustment of the atmospheric concentrations if the emission rates are changed abruptly. CO2 is a special case since it has no real sinks but is merely circulated between various reservoirs (atmosphere ocean biota) The lifetime of CO2 given in the table is a rough indication of the time it would take for the CO2 concentration to adjust to changes in the emissions… (FAR WGI, my emphasis. Table 1.1 gives the CO2 “lifetime” as 50 200 years).

And then explained that he rejects the fact that CO₂ circulates between various reservoirs. Ari seems to think that CO₂ goes into the ocean and stays there, never to re-emerge. He's wrong. Ari wrote:

No real sinks? How about the ocean? Is it not real, or has “it been impossible to verify that it was real”? A relatively minor point is that the word “reservoir” is subtly misleading, because it suggests a fixed capacity, while the capacity of the ocean and biota are flexible and increase with the increase of CO2 concentration in the atmosphere.

So he thinks that reservoirs always carry the same fixed quantity. He hasn't seen the Hume Dam in flood or drought.

More conspiracy theorising from Ari Halperin

Much of the rest of his article is wacky conspiracy theorising. (I'm guessing English isn't his first language because he shows an inability to comprehend fairly simple passages.) Ari talks about "semantic trickery", "dishonest calibration", "politically important “scientific conclusions”" being "proven wrong" and more.

He picked on the word "fraction" in the glossary of the AR4 report:

The ‘airborne fraction’ (atmospheric increase in CO2 concentration/fossil fuel emissions) provides a basic benchmark for assessing short- and long-term changes in these processes.

Glossary, AR5: Airborne fraction [means] The fraction of total CO2 emissions (from fossil fuel and land use change) remaining in the atmosphere.

Seems straightforward, doesn't it. But not to Ari. He wrote:

...the “airborne fraction” is not a fraction. Outside of math, the word fraction suggests a quantity between 0 and 1. The “airborne fraction,” as defined by the IPCC, can be anything from -∞ to +∞. For example, if anthropogenic emissions decrease and become half of the sinks, the airborne fraction would be -2 (in the absence of other natural factors).

Why does he say it's not a fraction? All a fraction is, is a part of the whole. In this case, it's the proportion of CO₂ emissions that remain in the air. Why does he talk about "outside of math"? Fractions are inside of mathematics, not outside. If emissions dropped so much that more was absorbed by the oceans and land than stayed in the air, then that's a good thing, surely. I can live with a negative annual airborne fraction. Of course the total airborne fraction (since 1750) will be positive for thousands and thousands of years regardless of what we do.

He makes an even bigger error when he writes:

Finally, the “airborne fraction” is physically meaningless, because annual CO2 sinks are practically independent of the annual anthropogenic emissions.

That's plain wrong. The amount absorbed by the oceans, for example, is related to the partial pressure of CO₂ in the atmosphere. If there's less, then less will be absorbed and vice versa.

Living in residence, sub-letting, turnover and vacancy

Thing is, Ari doesn't just not understand English or maths, he understand the science either. He makes a big fuss resurrecting the old and wrong denier meme saying that CO₂ residence time is only five years. That's based on a lack of understanding of science and terminology. Ari wrote:

Residence time is usually defined as the average time that a molecule resides in the system under consideration. The residence time of CO2 in atmosphere is about five years. IPCC probably meant not the residence time, but something like “e-folding time of excess concentration,” but wanted to avoid any hint of exponential decay. So it came up with tortured language and a flatly wrong statement.

And couldn't resist some more conspiracy ideation, adding:

The paradox of climate alarmism is that the further it gets from truth, the stronger it becomes: Credo quia absurdum. Some opponents of Climatism noticed this obvious blunder, made much of it, and missed a big deception hidden behind the blunder. To add insult to injury, the Climatists laughed at the opponents, accusing them of not understanding “IPCC science.”

Okay, let's laugh at Ari. The time for an individual carbon atom to stay in one place (the air or the ocean or a plant for example) is considerable shorter than the time it takes for there to be a net movement of carbon from the atmosphere to the surface. Since Ari picked on the word "residence", think of it as sub-letting vs a vacant apartment. A person rents an apartment and then moves out but sublets the apartment to someone else. So the apartment remains occupied. Then the original tenant moves back in and the sub-letter moves out. As long as the apartment is occupied, it is not vacant. There is no net movement. The ins balance the outs. It's only when the apartment falls vacant that the residence time stops.

That's what Figure 2 up top is all about. It shows how long it takes for there to be an overall reduction in atmospheric CO₂ after an injection.

If there's anyone still not convinced that in a steady state system, a molecule leaving the air is replaced by a molecule coming into the air, try this. Pop into your pantry and get some food dye.

1. Get two jugs that will hold around the same amount of water
2. Fill one glass jug with water.
3. Add a couple of drops of food dye - call that the atmosphere and the food dye CO₂.
4. Then fill another jug with the same amount of plain water as you put in the first jug. Call that the ocean.
5. The atmosphere jug should be coloured from the food dye. The ocean jug should be clear colourless water (depending on your water supply).
6. Pour half a cup of the water from the atmosphere jug into the ocean jug.
7. Then pour half a cup of water from ocean jug into the atmosphere jug.
8. Repeat steps 6 and 7 for a while.

Eventually if you do this for long enough, you'll find that the colour of the water in both jugs is about the same. Can you tell which bits of food dye went from one jug to the other? Does it matter? The "residence time" of an individual molecule of food dye in one jug or the other is irrelevant to the colour of the water in each jug. The colour of the water indicates how much total food dye is in each jug, it doesn't matter whether an individual molecule ever left the first jug. What matters is that enough food dye molecules were exchanged between the two jugs to even things out.

In the Earth system, carbon atoms move between the ocean, the air and the land surface (including soil and plants etc). As more and more CO₂ is poured into the atmosphere, more also goes into the oceans and land, and out again circulating into the air. It's not a one-way trip. There's probably a point at which the biosphere starts to absorb a lesser fraction of emissions, and maybe the oceans too. Then things will really start to heat up.

Into the dustbin

Ari's final paragraph reminded me of an equally dumb publication. He wrote:

Thus, every IPCC report can be compared to a garbage bin in a public square: delicious leftovers from good restaurants are thrown together with rotten fruits and sprinkled liberally with bird feces. One might take a look at the bin to see what sort of food is served in a nearby restaurant, but eating from the trash is not advisable. Some distinguished scientists contributed to the IPCC reports, especially the WGI, but their work lost all value when it was mixed with alarmist viewpoints.

That tells you all you need to know about WUWT.

From the WUWT comments

This article is already way too long but let me show you the type of audience WUWT attracts these days, because Anthony Watts posts silly articles like Ari Halperin's, claiming that the carbon cycle is a hoax. Early on there was a bit of to-ing and fro-ing about whether scientists are intelligent or not. I didn't see anyone commenting on the lack of intelligence at WUWT.

Bill Illis makes a sweeping statement, which will no doubt dismay all the WUWT-ers who own coal shares. Assuming he's talking about the annual fraction, he is hopefully right. If he's talking about the total airborne fraction, he's out by a few million years:

March 16, 2016 at 1:18 pm
It is not like the scientists involved are not intelligent. They are.
It is just that they chose to tell the scary story rather than the true accurate one.
The airborne fraction will probably fall below Zero at some point since the Carbon sinks will be greater than our emissions at some point in several decades.

ristvan says says something half sensible for a change, but then goes and spoils it with:

March 16, 2016 at 3:31 pm
Yes. ‘radioactive’ half life is different than ambient concentration half life. Individual CO2 molecules presumably have no memory. So some deni&rs confusing molecular half life with concentration half life. PLEASE stop this warmunist targetable mistake.
BUT, the best studies on carbon sinks put the latter (relevant for CAGW) at at most ~50 years. Still a very large IPCC fail. And worthy of several serious rebuttal sound bites.

bw confuses the net removal of CO₂ from the atmosphere with the movement into and out of the air of individual CO₂ molecules:

March 16, 2016 at 6:10 pm (extract)
If all CO2 sources stopped, then 1/2 of all CO2 in Earths atmosphere will be removed in 10 years. That is by direct observation of the so-called “bomb 14C” tracers curve.

I'll post this one in full, because it's typical of the sloppy muddled thinking of deniers who think that the surface has an infinite capacity for absorbing CO₂. george e. smith wrote:

March 16, 2016 at 4:06 pm
Well I measure the half life of CO2 in the atmosphere; actually the decay time constant, by the observed annual cycling of CO2 abundance in the atmosphere as recorded at Mauna Loa and elsewhere.
At ML, the annual cycling is about 6 ppmm on top of about a 1-1.5 ppmm steady annual increase.
North of the Arctic circle, this annual growth is about the same (CO2 is well mixed they claim) but the annual cycling is between 18 and 20 ppmm.
Now that 6 ppmm drop or 18-20 ppmm drop takes place in just 5 months, and it grows back in 7 months.
So if we take the CO2 excess over the long term stable 280 ppmm as being 120 ppmm, then at the initial polar drop rate, that would all be gone in about 6 x 5 months or 2.5 years. At ML it would be three times that long or 7.5 years, so that is the exponential decay time constant.
If the cyclic process was not terminated after five months, but continued to act, then in five time constants 99% of the exces CO2 would be gone. Or 95% would be gone in three time constants or 7.5 years (polar) and 22.5 years at ML.
So 200 year residence times are just silly.
The atom bomb tests involved 14C not 12C or 13C, so just what evidence do we have for the take up times of 14C in other environmental processes.
If plants can segregate 12C from 13C, then why would we suppose that 14C uptake would match either of those.

Luke injects a whiff of reality and draws flak:

March 16, 2016 at 1:41 pm
The bottom line is that CO2 concentration in the atmosphere is still increasing. Until that changes, AGW will continue.

I haven't heard this outmoded and wrong denier meme for a while. Edmonton Al is a greenhouse effect denier and a temperature observation denier:

March 16, 2016 at 2:35 pm
Yep. Still rising, only the temperature is not.
Besides, it is shown that CO2 levels lag GW.
Therefore CO2 does not cause GW.

Seth quips back:

March 16, 2016 at 6:41 pm
Yep. Still rising, only the temperature is not.
Is this some new meaning of “Not Rising”?

There are lots of Agenda21 conspiracy nutters who have a very long residence time at WUWT. ossqss has a paranoid theory:

March 16, 2016 at 2:07 pm
It has never really been about CO2. CO2 is just a fabricated control knob for the desired U.N. global energy control and distribution mechanisms.
Just sayin, everyone still laughs at the mention of Agenda 21, but it is right in their face, everyday, in every country…...

Rudd Istvan emerges again to make up for his earlier lapse of judgement, and assure all the dim deniers that he really is a climate conspiracy theorist and really doesn't accept any science. ristvan wrote:

March 16, 2016 at 2:28 pm
Great essay. Terrific documented forensic analysis.
The Bern model implicitly assumes carbon sinks saturate. Land greening (satellite NVDI by ecosystem) and decades of phytoplankton surveys (especially Atlantic permanent sink ‘chalk’ formers recently published) have shown observationally this warmunist assumption is simply not true.
Essay exposes unscientific untruths from the very beginning of IPCC. Plus many. Kudos. Your site is now permanently bookmarked for periodic review. And, this essay deserves more than one political sound bite formulation.:

Wagen must be new to WUWT. Someone needs to let him or her know that Anthony Watts specialty is false allegations of fraud, wacky conspiracy theories, and blanket denial of climate science.

March 16, 2016 at 2:41 pm
“their treatment of the carbon cycle was fraudulent from the start”
Why are people letting you publish this? Can I wonder “why you are being slanderous from the start?”

Marcus, who is a WUWT resident conspiracy theorist who wouldn't know a molecule from an atom, taunts Wagen, Dunning Kruger style:

March 16, 2016 at 3:30 pm
..Try reading the article child, or do you have a reading comprehension problem on top of being stupid ?

I'll finish with this comment, which is typical of the calibre and emotional quotient of WUWT fans. probono asks:

March 16, 2016 at 3:55 pm
Is there CO2 under my bed? How long will it be there???

References and further reading

The Carbon Cycle - feature article by Holli Riebeek at NASA's Earth Observatory

J.T. Houghton, G.J. Jenkins and J.J. Ephraums (eds.). "Climate Change: The IPCC Scientific Assessment Report prepared for Intergovernmental Panel on Climate Change by Working Group I" Cambridge University Press, Cambridge, Great Britain, New York, NY, USA and Melbourne, Australia (1990) Link

Stocker, T. F., D. Qin, G. K. Plattner, M. Tignor, S. K. Allen, J. Boschung, A. Nauels, Y. Xia, B. Bex, and B. M. Midgley. "IPCC, 2013: climate change 2013: the physical science basis. Contribution of working group I to the fifth assessment report of the intergovernmental panel on climate change." (2013). Link
